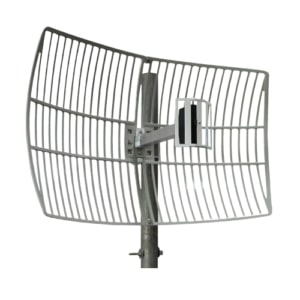

2.4GHz 15dBi Directional Parabolic Grid WiFi Antenna

Model NO:

TGC-2400-15E4

  • Operated at 2400-2500MHz frequency band for WiFi
  • True 15dBi high gain
  • Ideal suit for outdoor point to point long range connection
  • Outdoor pole mount installation
  • Heavy duty mounting brackets
  • Dimensions: 400×300 mm
  • N Female connector

CATEGORIES:

SHARE:

Electrical Specifications
Frequency2400-2500 MHz
Gain15 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width16°
Vertical Beam Width21°
F/B Ratio≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension300×400mm
Weight1.5kg
MountingMast Ø40-Ø60 mm
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
