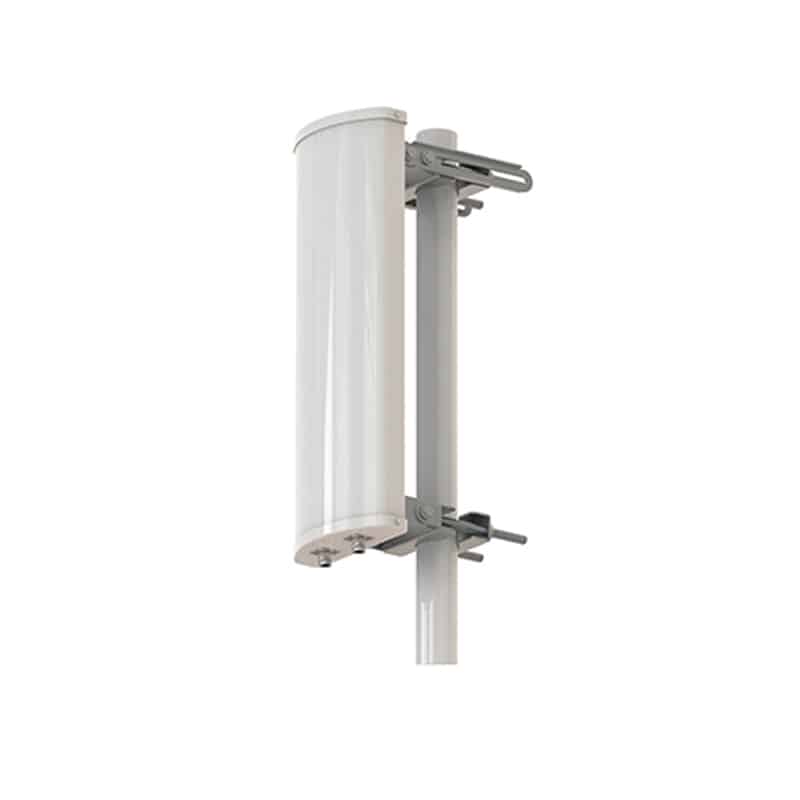

2.4GHz 17dBi 90° 2×2 Dual Polarized Outdoor Base Station MIMO Sector Antenna

Model NO:

TSC-2400-17D90

Operated at 2400-2500MHz frequency band
True 17dBi gain for each radiator
90-degree 3dB horizontal beamwidth
V/H dual polarization
Heavy-duty mounting brackets
Rugged UV protected PVC antenna housing
Dimensions: 1300×134×64mm
2×N Female connector

CATEGORIES：

2.4 GHz Antennas, MIMO Sector Antennas, Sector WiFi Antennas

SHARE:

Electrical Specifications
Frequency	2400-2500 MHz
Gain	17 dBi
VSWR	<1.8
Polarization	Horizontal and Vertical
Horizontal Beam Width	90°
Vertical Beam Width	6°
F/B Ratio	≥20dB
Isolation	≥28dB
Impedance	50 ohms
Max. Input Power	100W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	2×N Female
Dimension	1300×134×64mm
Weight	3.5kg
Mounting	Mast Ø40-Ø60 mm
Radome Material	ABS
Rate Wind Velocity	210km/h
Operating Temperature	-40℃ – +65℃
